RP-S Series : Stepper motor drive
- The RP-S is a long-life, high-capacity pump driven by a stepper motor.
- With stepper motor drive, the flow rate can be adjusted over a wide range from 0.7 to 600 mL/min.
- A dedicated driver board for stepper motor control is also available.
| Download |
|---|
| Catalog (PDF) |
| Outline drawing (PDF) |
| 3D CAD data (STEP) |
| 2D CAD data (DXF) |
| Model No. | Discharge rate (mL/min) |
Tube | Accessory wire | |||
|---|---|---|---|---|---|---|
| Material∗1 | IDｘOD (mm) |
|||||
| RP-S06N-600Ｚ-DC24VS | 0.7 (at 0.3 rpm) to 600 (at 250 rpm) |
Tygon A-60-F |
6.35 x 9.52 | Without JST Connector for Driver Board Compatibility | ||
| RP-S06R-600Ｚ-DC24VS | Versilon F-5500-A |
|||||
| RP-S06F-600Ｚ-DC24VS | PharMed BPT |
|||||
| RP-S06W-600Ｚ-DC24VS | Transmaster TM-15 |
|||||
| RP-S06N-600A-DC24VS | 0.7 (at 0.3 rpm) to 600 (at 250 rpm) |
Tygon A-60-F |
6.35 x 9.52 | With JST Connector for Driver Board Compatibility | ||
| RP-S06R-600A-DC24VS | Versilon F-5500-A |
|||||
| RP-S06F-600A-DC24VS | PharMed BPT |
|||||
| RP-S06W-600A-DC24VS | Transmaster TM-15 |
|||||
|
∗1. Some of Saint-Gobain's tube names are changed a few years ago. Tygon A-60-F ← Norprene A-60-F (Old name) |
||||||

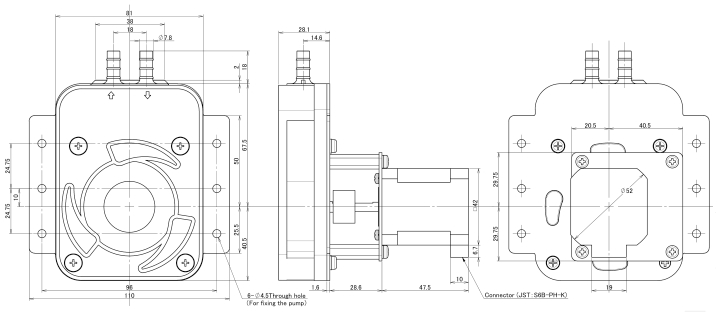

- The arrows indicate the discharge direction when the motor rotates clockwise.
*It varies depending on the tube material / size and the motor.
Stepper Motor Driver Board
This series is driven by a stepper motor.
To operate the stepper motor, a dedicated driver board is required.
We offer the following driver board as a separately sold option. Please contact us if needed.

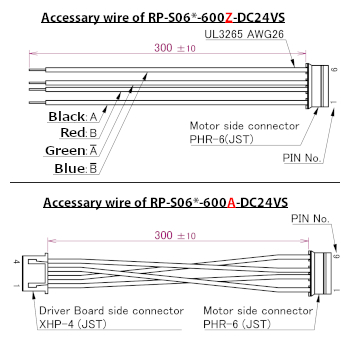

★ To use the driver board, you will need a pump equipped with wiring that includes
a JST connector compatible with the driver board (e.g., RP-S06*-600A-DC24VS).
Stepper Motor Driver Board BD202412-S
- A driver board used to connect the motor and power supply, and to control the motor via external control signals.
- Please prepare your own control device to send the control signals.
- A DC 24V, 2A power supply is required. Please use a DC power source, such as a DC power supply unit or AC adapter.
