RP-M Series : Stepper motor drive
- The RP-M is a pump driven by a stepper motor.
- The flow rate can be adjusted over a wide range from 0.2 to 60 mL/min, thanks to stepper motor control.
- A dedicated driver board for stepper motor control is also available.
| Download |
|---|
| Catalog (PDF) |
| Outline drawing (PDF) |
| 3D CAD data (STEP) |
| 2D CAD data (DXF) |
| Model No. | Discharge rate (mL/min) |
Tube | Accessory wire | |
|---|---|---|---|---|
| Material | IDｘOD (mm) |
|||
| RP-M04N-60Z-DC24VS | 0.2 (at 0.3 rpm) to 60 (at 100 rpm) |
Tygon A-60-F |
3.9 x 5.8 |

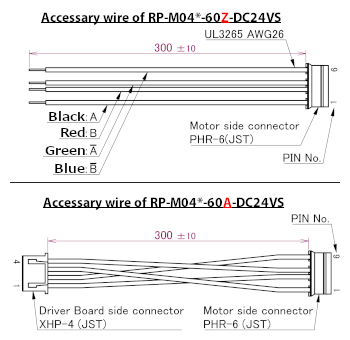

Without JST Connector for Driver Board Compatibility |
| RP-M04C-60Z-DC24VS | SWFT | |||
| RP-M04R-60Z-DC24VS | Versilon F-5500-A |
|||
| RP-M04F-60Z-DC24VS | PharMed BPT |
4.0 x 6.0 |
||
| RP-M04W-60Z-DC24VS | Transmaster TM-15 |
|||
| RP-M04N-60A-DC24VS | 0.2 (at 0.3 rpm) to 60 (at 100 rpm) |
Tygon A-60-F |
3.9 x 5.8 |
With JST Connector for Driver Board Compatibility |
| RP-M04C-60A-DC24VS | SWFT | |||
| RP-M04R-60A-DC24VS | Versilon F-5500-A |
|||
| RP-M04F-60A-DC24VS | PharMed BPT |
4.0 x 6.0 |
||
| RP-M04W-60A-DC24VS | Transmaster TM-15 |
|||

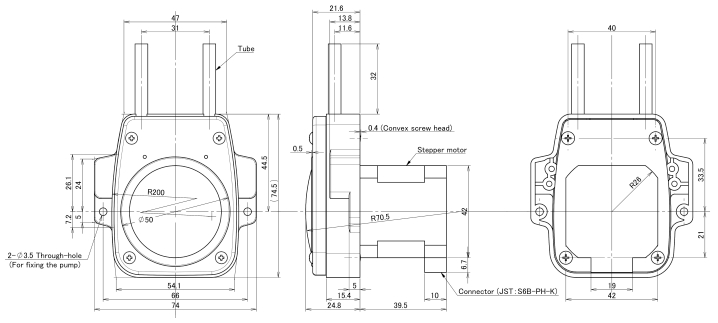

- The arrow indicates discharge direction
when the motor rotates clockwise.
*It varies depending on the tube material / size and the motor.
Stepper Motor Driver Board
This series is driven by a stepper motor.
To operate the stepper motor, a dedicated driver board is required.
We offer the following driver board as a separately sold option. Please contact us if needed.
★ To use the driver board, you will need a pump equipped with wiring that includes
a JST connector compatible with the driver board (e.g., RP-M04*-60A-DC24VS).
Stepper Motor Driver Board BD202411-M
- A driver board used to connect the motor and power supply, and to control the motor via external control signals.
- Please prepare your own control device to send the control signals.
- A DC 24V, 2A power supply is required. Please use a DC power source, such as a DC power supply unit or AC adapter.
