Discharge volume tables [Selecting a pump from the discharge volume]

The five tables below show the discharge volume range of our standard Ring Pump models and Constant discharge pump systems.
Click the horizontal line in the table to go to the pump details page.
Please contact us as we may be able to handle discharge volume other than the standard model.

How to use the table:

The "horizontal line" indicates the discharge volume range of the pump.
  - The table for standard pumps shows the discharge volume per minute during operation. [mL/min]
  - The table for constant discharge pump systems shows the discharge volume for one operation
     that can be set using the dedicated controller RE-C300. [ml]
"Model name: Discharge volume range (mL/min or mL)" are displayed above the "horizontal line".
Click "Horizontal line" or "Model name: Discharge volume range" to move to the details page.

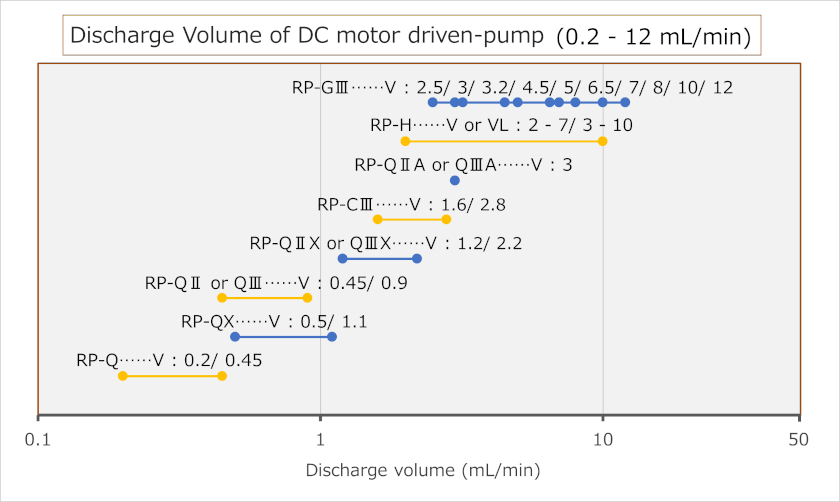

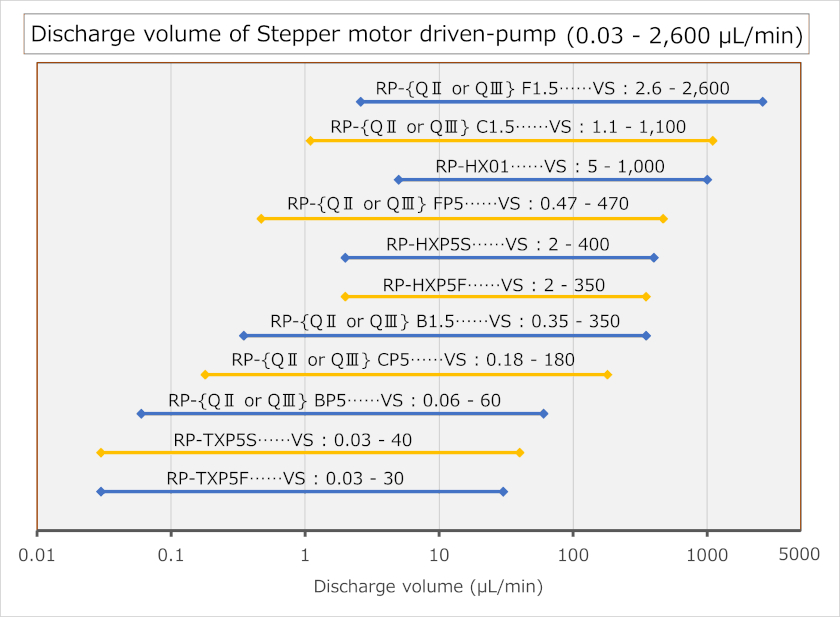

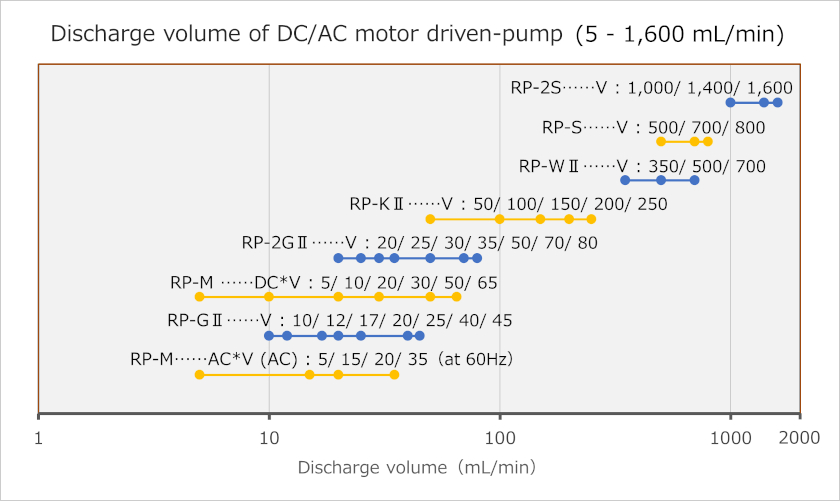

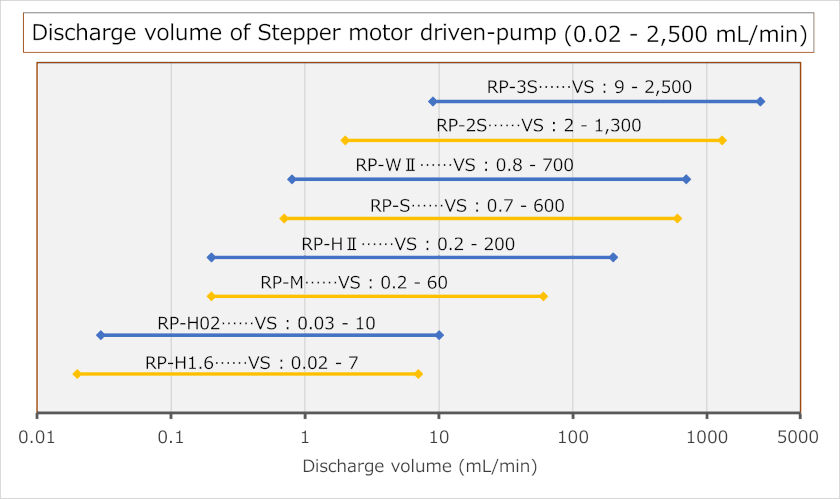

The tabl for standard pumps is divided into four tables according to the motor type and the discharge volume.
