RP-HⅢ Series : Pump head replacement type, Stepper motor drive

RP-HIII (Constant discharge pump system)
  • The RP-HⅢ is a stepper motor-driven pump with an interchangeable pump head.
  • The flow rate can be adjusted over a wide range from 0.06 to 45 mL/min, thanks to stepper motor control.

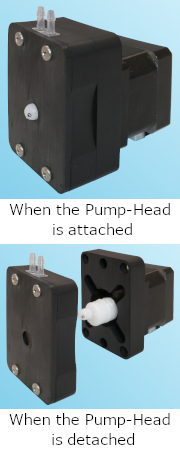

  • The pump head can be easily replaced using a one-touch magnetic coupling mechanism.
  • RK-HⅢ02S and RK-HⅢ02F pump heads are autoclavable:
    • Autoclave: 121°C for 25 minutes, up to 10 cycles
  • All pump heads are Gamma sterilizable to 25 kGy.
  • Three tubing options are available to suit various applications.
  • An optional driver board for stepper motor control is available.


Download
Catalog (PDF)
Outline drawing (PDF)
3D CAD data (STEP)
2D CAD data (DXF)

Standard model (Spec 1)
Model No. Discharge
rate
(mL/min)		 Tube Pump-Head model No. Accessory wire
Material IDｘOD
(mm)
RP-HⅢ02S-45Z-DC24VS 0.06
(at 0.3 rpm)
to 45
(at 250 rpm)		 Silicone 2.0 x
4.0		 RK-HⅢ02S Without JST Connector for Driver Board Compatibility
RP-HⅢ02F-45Z-DC24VS PharMed
BPT		 RK-HⅢ02F
RP-HⅢ02W-45Z-DC24VS Transmaster
TM-15		 RK-HⅢ02W
RP-HⅢ02S-45A-DC24VS 0.06
(at 0.3 rpm)
to 45
(at 250 rpm)		 Silicone 2.0 x
4.0		 RK-HⅢ02S With JST Connector for Driver Board Compatibility
RP-HⅢ02F-45A-DC24VS PharMed
BPT		 RK-HⅢ02F
RP-HⅢ02W-45A-DC24VS Transmaster
TM-15		 RK-HⅢ02W

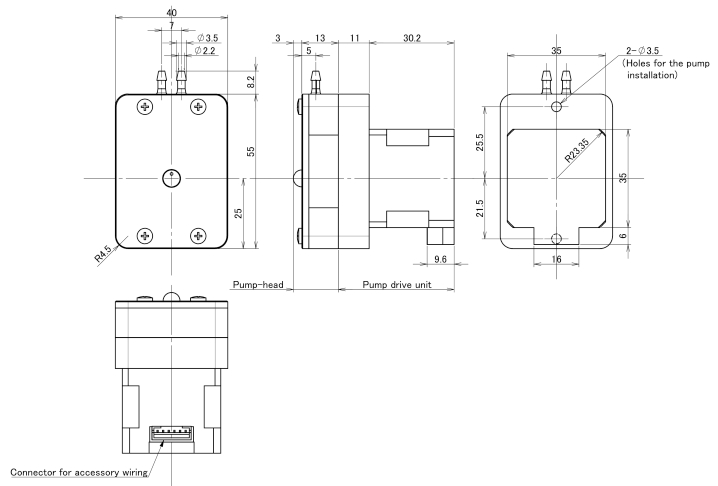

Outline drawing
RP-HIII Outline drw

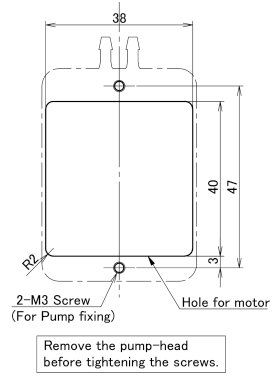

Mounting holes
RP-HIII Mounting hole drawing
Discharge direction
RP-HIII Discharge direction
  • The arrow indicates discharge direction
    when the motor rotates clockwise.

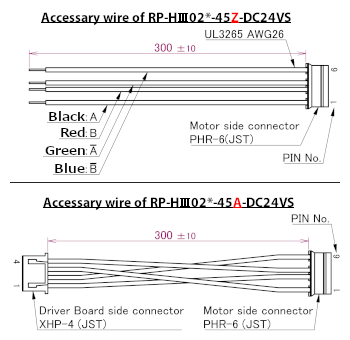

Accessary wire
RP-HIII; Accessory wire drw


Stepper Motor Driver Board

This series is driven by a stepper motor.
To operate the stepper motor, a dedicated driver board is required.
We offer the following driver board as a separately sold option. Please contact us if needed.
★ To use the driver board, you will need a pump equipped with wiring that includes
a JST connector compatible with the driver board (e.g., RP-HⅢ02*-45A-DC24VS).

Stepper Motor Driver Board BD202411-H3

Motor driver board photo
  • A driver board used to connect the motor and power supply, and to control the motor via external control signals.
  • Please prepare your own control device to send the control signals.
  • A DC 24V, 1A power supply is required. Please use a DC power source, such as a DC power supply unit or AC adapter.

    • Click here to view the driver board manual.
