RP-2S Series : 2 pump heads connected, Stepper motor drive

The RP-2S is a dual-head, long-life, high-capacity pump driven by a stepper motor.
Thanks to the stepper motor drive, the flow rate can be adjusted over a wide range from 2 to 1,300 mL/min.
By combining the two inlets into a single inlet and the two outlets into a single outlet, the dual-head design helps reduce discharge flow pulsation compared to the RP-S model.
Click here for more information about pulsation.
Each of the two pump heads can draw in different liquids, allowing simultaneous transfer of two different fluids.
A dedicated driver board for stepper motor control is also available.

Download

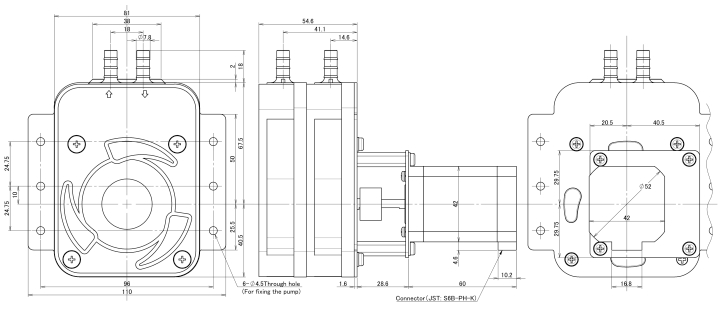

Outline drawing (PDF)
3D CAD data (STEP)
2D CAD data (DXF)

Model No.	Discharge rate (mL/min)	Tube		Accessory wire
Model No.	Discharge rate (mL/min)	Material^∗1	IDｘOD (mm)	Accessory wire
RP-2S06N-1300Ｚ-DC24VS	2 (at 0.3 rpm) to 1,300 (at 250 rpm)	Tygon A-60-F	6.35 x 9.52	Without JST Connector for Driver Board Compatibility
RP-2S06R-1300Ｚ-DC24VS		Versilon F-5500-A
RP-2S06F-1300Ｚ-DC24VS		PharMed BPT
RP-2S06W-1300Ｚ-DC24VS		Transmaster TM-15
RP-2S06N-1300A-DC24VS	2 (at 0.3 rpm) to 1,300 (at 250 rpm)	Tygon A-60-F	6.35 ｘ 9.52	With JST Connector for Driver Board Compatibility
RP-2S06R-1300A-DC24VS		Versilon F-5500-A
RP-2S06F-1300A-DC24VS		TPharMed BPT
RP-2S06W-1300A-DC24VS		Transmaster TM-15
∗1. Some of Saint-Gobain's tube names are changed a few years ago. Tygon A-60-F ← Norprene A-60-F (Old name)

The arrows indicate the discharge direction when the motor rotates clockwise.

*It varies depending on the tube material / size and the motor.

Stepper Motor Driver Board

This series is driven by a stepper motor.
To operate the stepper motor, a dedicated driver board is required.
We offer the following driver board as a separately sold option. Please contact us if needed.

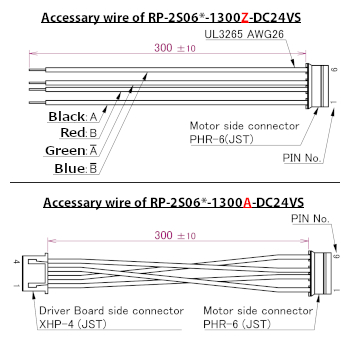

★ To use the driver board, you will need a pump equipped with wiring that includes
a JST connector compatible with the driver board (e.g., RP-2S06*-1300A-DC24VS).

Stepper Motor Driver Board　BD202412-S

A driver board used to connect the motor and power supply, and to control the motor via external control signals.
Please prepare your own control device to send the control signals.
A DC 24V, 2A power supply is required. Please use a DC power source, such as a DC power supply unit or AC adapter.

Click here to view the driver board manual.
